Fully Automatic 2 Lines Bag Making Machine with Auto Packing Device

Fully Automatic 2 Lines Bag Making Machine with Auto Packing Device

The machine is especially designed for making T-shirt bags with high productivity.It produces bags from input film to output products by two auto high-speed production lines. The machine is also equipped with an automatic plastic bag packing device, which allows you to set the number of bags to be packed by yourself.
Send Inquiry
Product Introduction

The machine is especially designed for making T-shirt bags with high productivity.It produces bags from input film to output products by two auto high-speed production lines. The machine is also equipped with an automatic plastic bag packing device, which allows you to set the number of bags to be packed by yourself.


Process flow

Feeding (blown tubular film) - Sealing - Punching - Counting – Stacking- Bag packing

This machine has a high degree of automation, automatic tracking of color codes, sealing, punching, waste recycling, folding, and bagging are all automated, and only need to place boxes behind the conveyor belt to automatically recycle bags. Manual feeding is only required, which reduces labor intensity and improves work efficiency. In today's era where labor costs are getting more and more expensive, this will help companies save a lot of money.


FEATURES:

● 2 lines T-shirt bag making machine

● High production efficiency to save manpower and time

● From film roll to final bag, one process flow

● It's easy to adjust the bag length, production speed, stacks on the interface

● Servo motor, as standard attachment, automatic film feeding, coordination free from tension adjustment

● Automatically stop when running out of film/ film feeding blocks or bags jam/ color scanning misses

● With auto packaging unit


Technical parameters

Model

XY-500x2

XY-H500x2

Bag width

220-450mm x2

220-450mm x2

Bag length

330-660mm x2

330-660mm x2

Speed

150-250 PCS/min x2

150-300 PCS/min x2

Bag single thickness

0.03-0.16mm

0.03-0.16mm

Power

7kw

12.5kw

Weight

2300kg

2600kg

Machine size

9.0x1.6x1.9m

11.0x1.6x1.9m

※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.


Possible Product

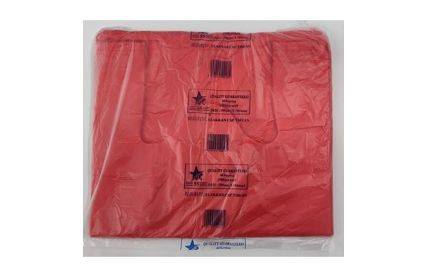

Biodegradable t-shirt bag


PE printer T-shirt bag


Tt-shirt bag with packing


Machine photo



Why choose us?

  • We provide personalized service to help you select the perfect Heat Sealing and Heat Cutting Bag Making Machine for your business.
  • Our mission is to provide sustainable power for world development with the most humanistic and innovative spirit, and to create high quality of life for the people of the world.
  • We offer a range of customized solutions to help you achieve your business goals and meet your unique needs and requirements.
  • Our enterprise spirit is honesty, cooperation, refinement and win-win. Only do these points, in order to let the enterprise better development.
  • We use sustainable processes and materials to manufacture our Heat Sealing and Heat Cutting Bag Making Machines.
  • The factory has complete testing equipment and strong technical force, so the annual production capacity is huge and the inventory is sufficient.
  • We invest in the latest technology and equipment to manufacture the best Heat Sealing and Heat Cutting Bag Making Machines.
  • Our company is a young and innovative enterprise, focusing on the development and production of advanced Fully Automatic 2 Lines Bag Making Machine with Auto Packing Device, and strives to provide solutions for customers at home and abroad. We provide advanced assembly and inspection technologies to improve processes, increase the degree of industrial automation, and enhance the competitive advantage of customers.
  • Our experienced team delivers reliable, efficient Heat Sealing and Heat Cutting Bag Making Machines to meet your needs.
  • We are united, innovative, brave to break the bottleneck of industry development, and gradually build and expand the company's field.
