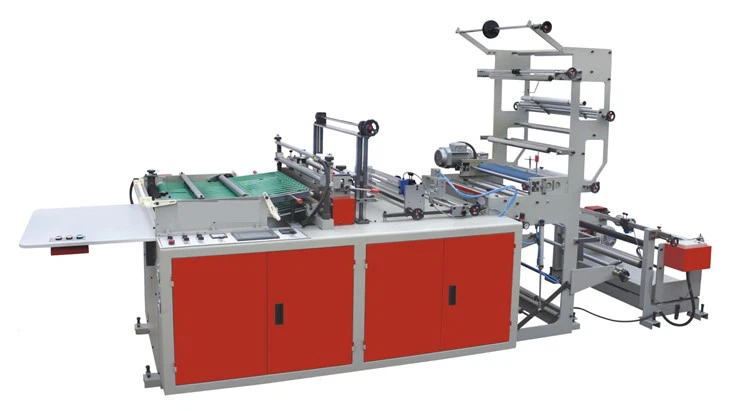

Plastic Beverage Cup Carrier Bag Making Machine

The Plastic beverage cup carrier bag making Machine delivers up to 150 strokes/ minute and is suitable for LDPE/ HDPE/ PP/ BOPP films. This machine is customized for the production of Plastic beverage cup carrier bag, but it is customized according to customer needs. We have added Die cutter hole puncher and secondary reinforcement function for inserting the bottom. We use 2 Servo drives for this making machine, make sure the bag cutting and feeding are consistent, so that the sealing line in the middle of the bag will not be stretched twice.

Send Inquiry

Product Introduction

Machine Video:

Features:

● High production efficiency to save manpower and time

● Computer control over the entire process

● From film roll to final bag, one process flow

● Servo motor, as standard attachment, makes it easy to adjust the bag length and the production speed

● Automatically stop when running out of film

● Automatically stop when color scanning misses

Technical parameters

Model	XY-600	XY-800	XY-1000
Max.bag width of sealing	990mm	990mm	990mm
Max.bag length of sealing	550mm	750mm	950mm
Bag thickness	0.01-0.10mm	0.01-0.10mm	0.01-0.10mm
Bag making speed	40-150pcs/min	40-150pcs/min	40-150pcs/min
Main motor	1.1kw	1.5kw	2.2kw
Weight	700kg	900kg	1000kg
Machine size	3.0x1.2x1.5mm	3.0x1.4x1.5m	3.0x1.6x1.5m
