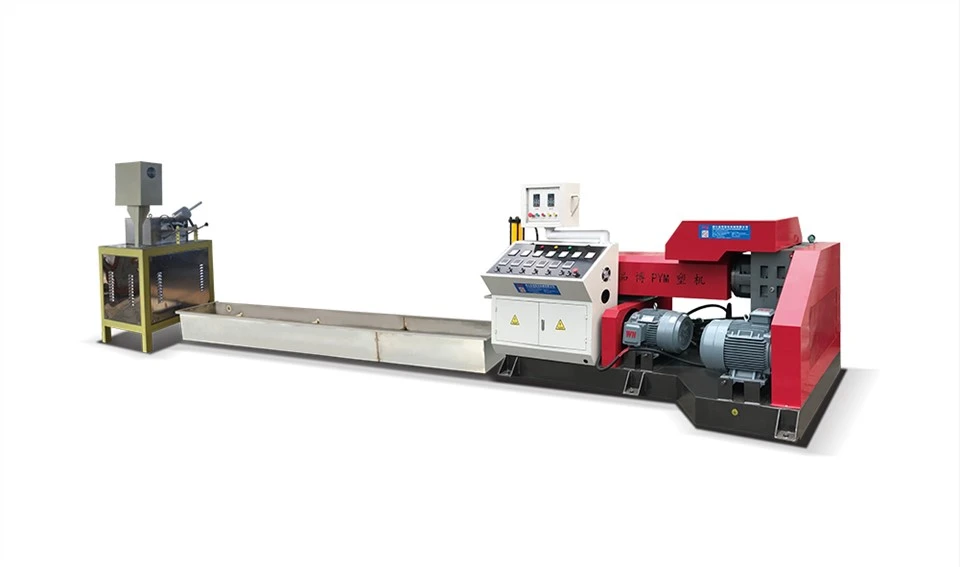

Water-cooling Plastic Recycling Machine
Features:
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE and PP, etc. It’s equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control.
The granulating crusher uses adjustable speed motor, pelleting with and extruding machine at the same discharging speed synchronistical. The unit is easy to operate, with a high output, steady performance and favorable economic benefit.
Technical parameters
Model | XY-B100 | XY-B110 | XY-B120 |
Screw diameter | 100 | 110 | 120 |
Screw L/D | 20:1 | 20:1 | 20:1 |
Screw speed | 10-100r/min | 10-100r/min | 10-100r/min |
Main motor | 30kw | 37kw | 45kw |
Max output | 80kg/h | 100kg/h | 120kg/h |
Weight | 2800kg | 3000kg | 3200kg |
Machine size | 4.2x1.5x1.8m | 4.4x1.5x1.8m | 4.6x1.5x1.8m |
※Correct specifications depend on the actual model. All specifications are subject to change without prior notice.

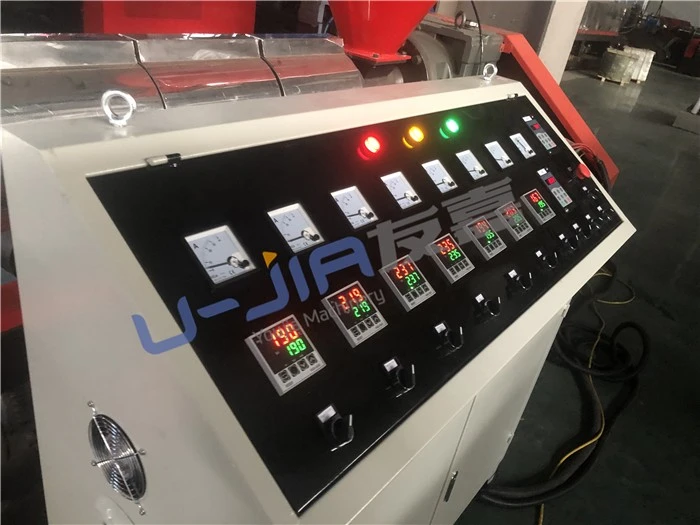

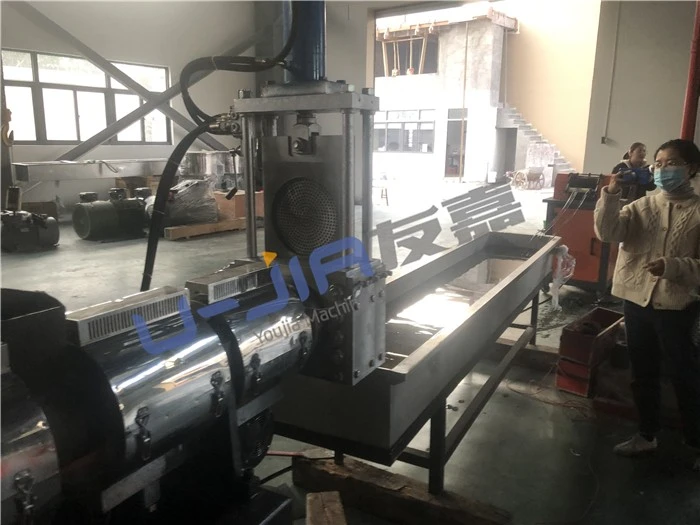

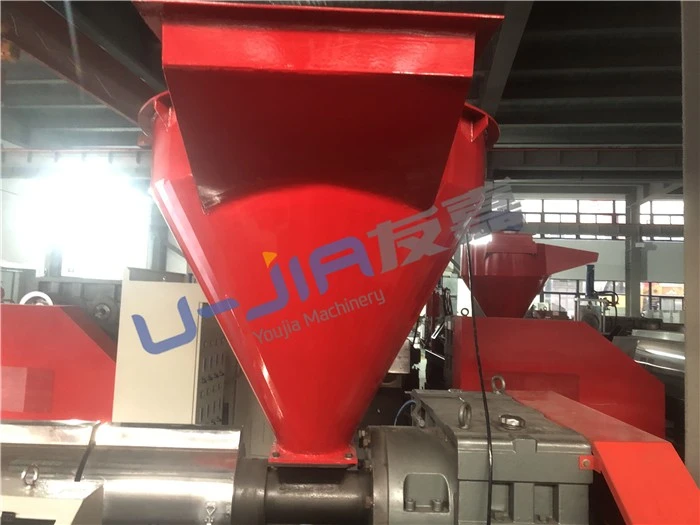

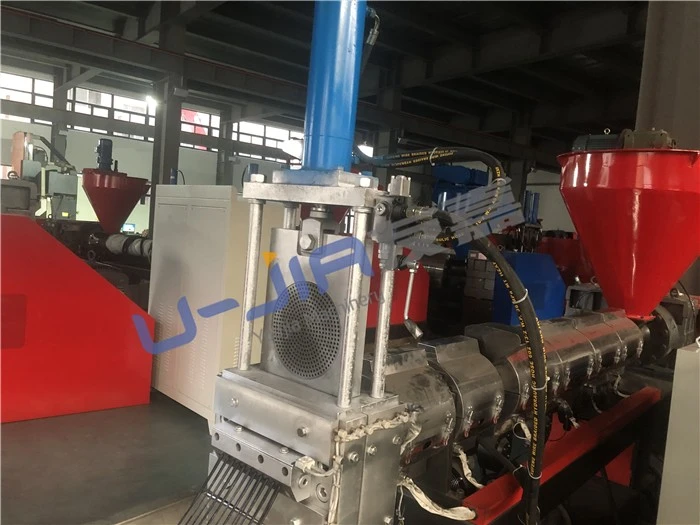

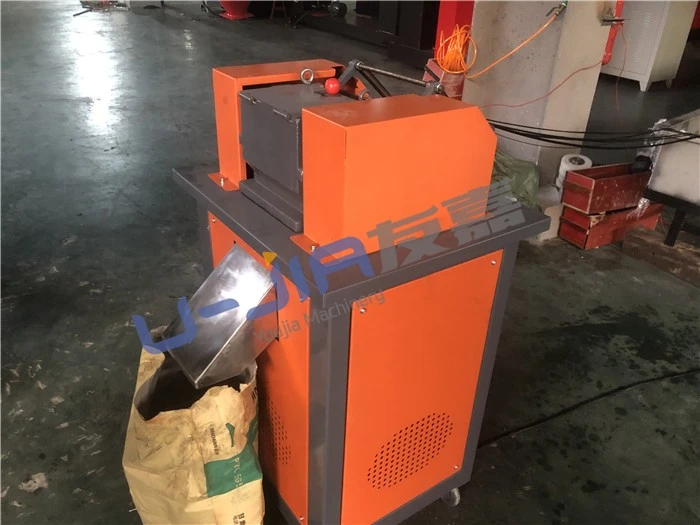

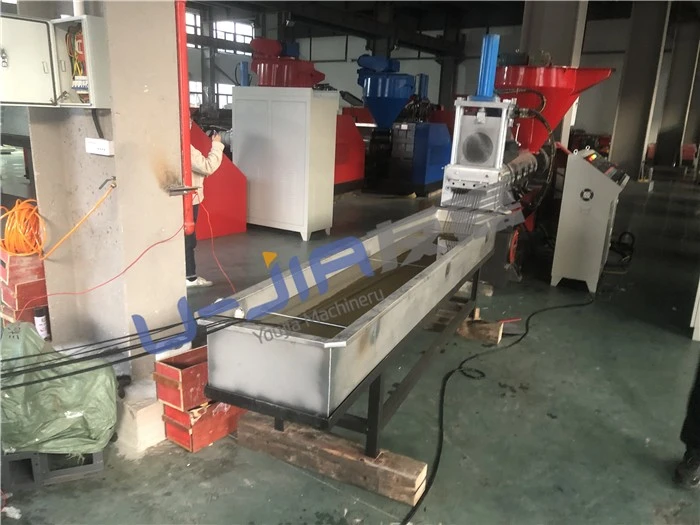

Machine photo
